MOD1HDv2 | 1080P MPEG2 DVB-T and DVB-C encoder modulator
MOD1HDv2 | 1080P MPEG2 DVB-T and DVB-C encoder modulator
GET TRADE PRICING OR BUY NOW
description
Convert HDMI to 1080P MPEG2 DVB-T and DVB-C.
OGG-Xv2 MPEG2 encoding engine is compatible with all Australian HDTVs (new and old).
Quick setup presets reduce setup time and minimise training complexity when deploying multiple channels on MATV networks. Including a range of predefined Foxtel and standard channel presets.
Low latency mode reduces time delay between input video and output service, effectively minimising lag between IR remote control and displayed image.
All parameters including; output channel, LCN, service name, ONID, SID and TSID programmed easily from the menu.
Wall and rack mount bracket options available.
MANUAL
FULL SPEC
QUICK SETUP PRESET LIST

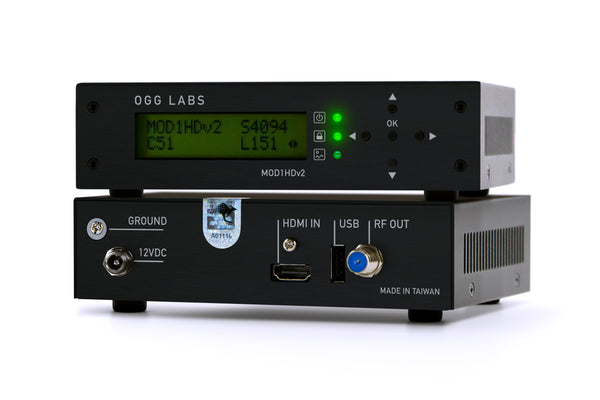

MOD1HDv2
Convert HDMI to 1080P MPEG2 DVB-T and DVB-C.
Distribute HD content over coax quickly and easily.
-
Works on all Australian HDTVs
Built for Australia, MOD1HDv2 doesn't suffer common compatibility issues of other leading brands. -
Low latency encode engine
We've optimised our encode engine to perform at low latency. This means less delay between source and connected network. -
Fully customisable
All parameters including; output channel, LCN, service name, ONID, SID and TSID can be modified easily from the menu. -
Deploy many channels quickly
OGG LABS quick setup technology drastically reduces install time and training complexity when deploying multiple channels on MATV networks.
Technical Specifications
-
Video
Encode Format; MPEG-2 MP@ML
Supported Input; 1080p/720p 60/50/30/25
Supported Output; 1080p 30/25 720p 60/50/30/25 -
Audio
Encoding Format; MPEG-1/AAC -
System
LCN; 1-999
Service name; 15 Chars.
NIT; Programmable
Encoder; OGG-Xv2 MPEG2 engine
Operating temp; 0-40 C
Freq. Range 174-860 MHz
Output level; 69-101 dBuV
Output quality; >36 dB MER -
In/Out
Input; HDMI
Output; F-Connector
